three.js demos

Five progressively richer browser demos of the ADR-097 sensing-helpers scene, ending with a live MediaPipe-Pose → Mixamo X Bot retargeting pipeline driven by a real ESP32 CSI feed.

Run them

python examples/three.js/server/serve-demo.py
# then open one of the URLs the script prints

server/serve-demo.py is a tiny ThreadingHTTPServer with aggressive no-cache headers — the stdlib http.server is single-threaded and times out on the parallel script + FBX fetches the demos make.

Demos

#	File	What it shows

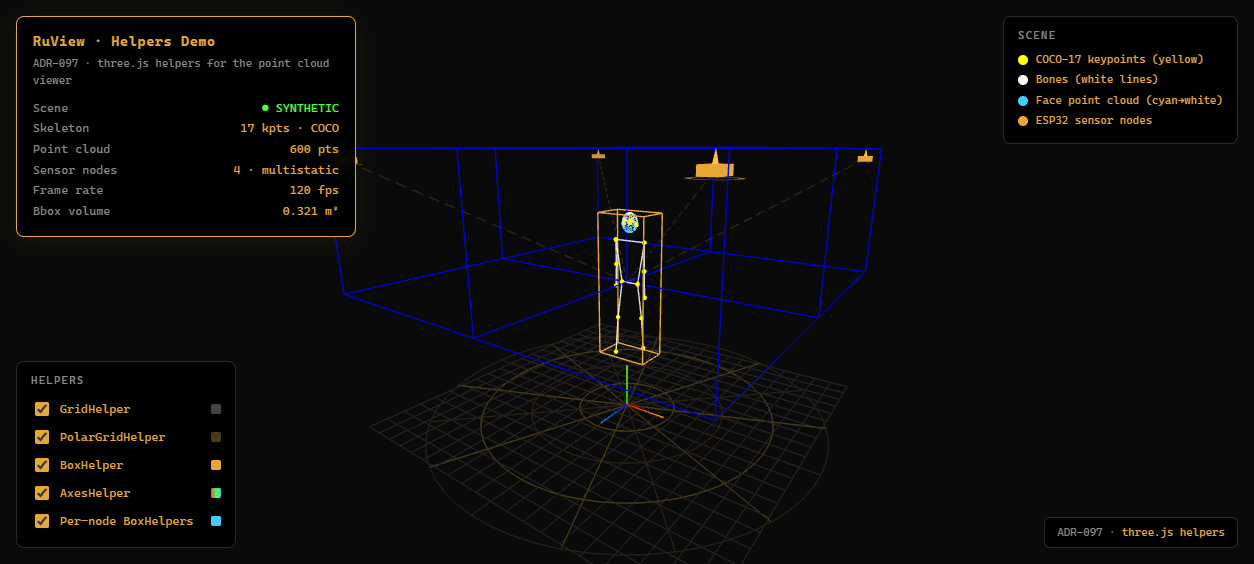

01	`demos/01-helpers.html`	Plain ADR-097 helpers in the point-cloud viewer

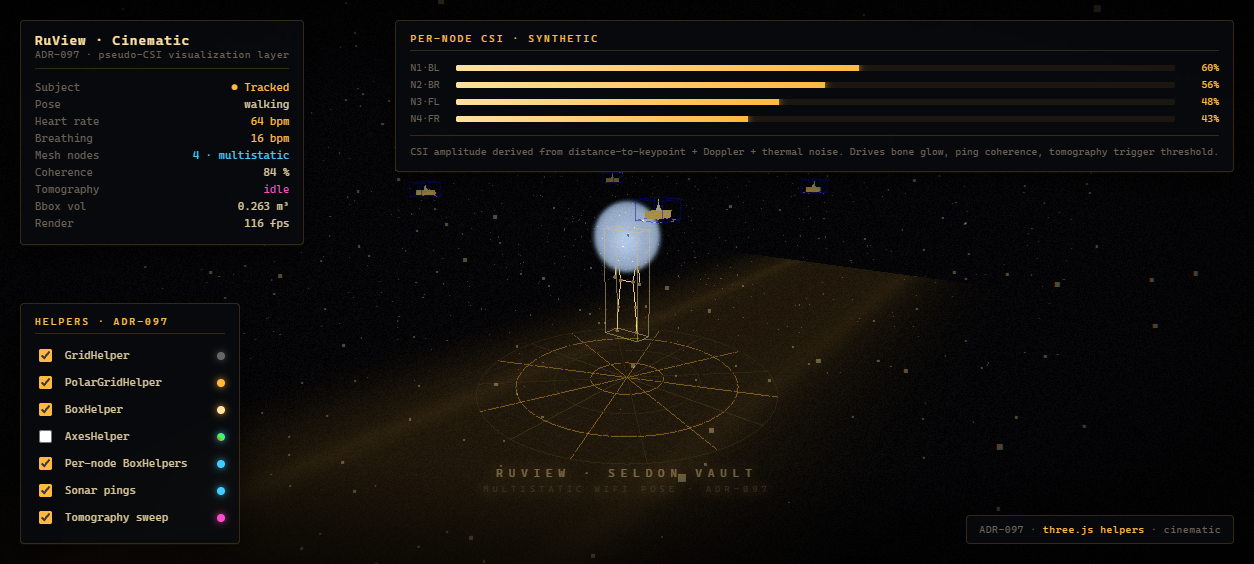

02	`demos/02-cinematic.html`	Cinematic camera + pseudo-CSI visualization on top of #01

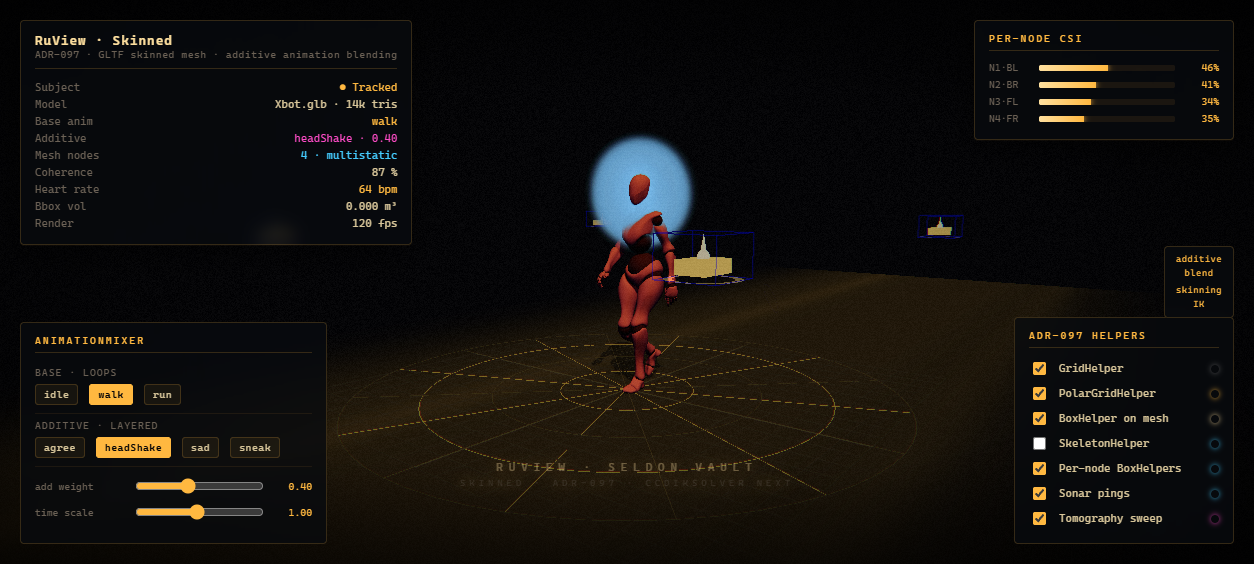

03	`demos/03-skinned.html`	GLTF skinned mesh + additive animation blending

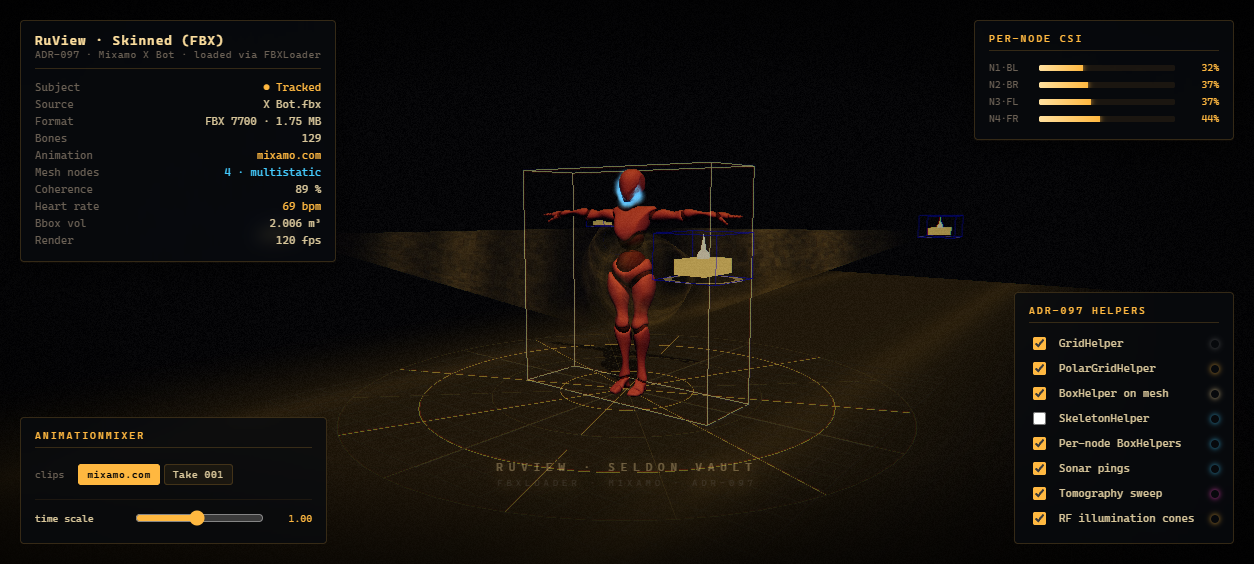

04	`demos/04-skinned-fbx.html`	Mixamo X Bot loaded from FBX in the ADR-097 scene

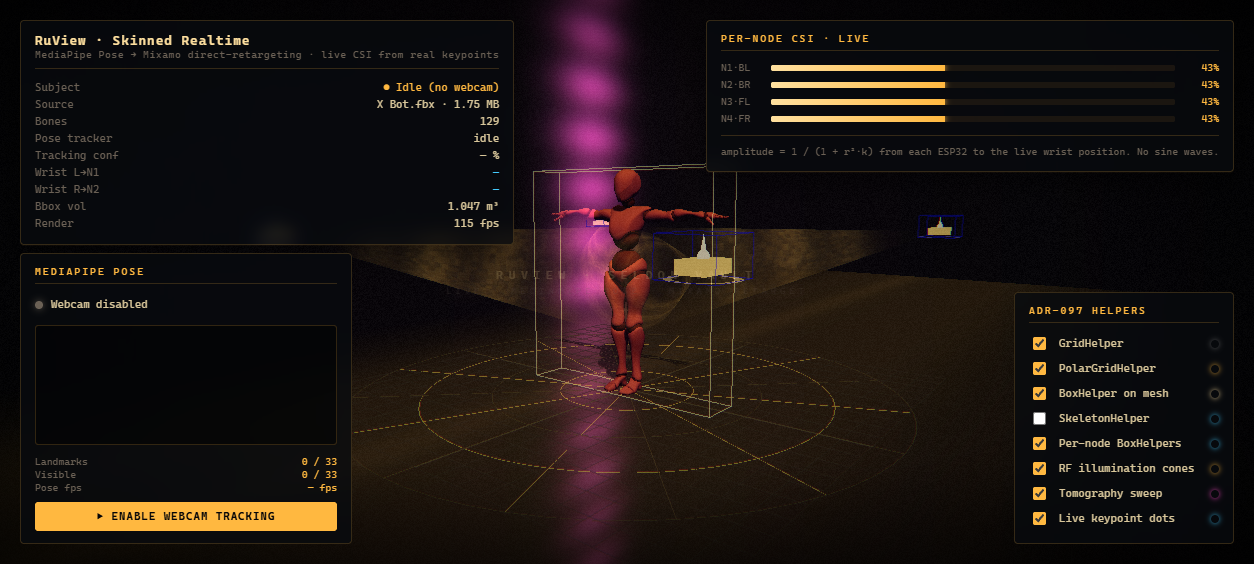

05	`demos/05-skinned-realtime.html`	Webcam → MediaPipe Pose Heavy → Mixamo IK retarget, live ESP32 CSI overlay

Screenshot

Layout

examples/three.js/
├── README.md
├── .gitignore
├── demos/                       # 5 self-contained HTML demos
│   ├── 01-helpers.html
│   ├── 02-cinematic.html
│   ├── 03-skinned.html
│   ├── 04-skinned-fbx.html
│   └── 05-skinned-realtime.html
├── screenshots/                 # one PNG per demo
│   └── 0N-*.png
├── server/
│   ├── serve-demo.py            # local HTTP server with no-cache headers
│   └── ruvultra-csi-bridge.py   # ESP32 CSI WebSocket bridge (ruvultra:8766)
└── assets/
    └── X Bot.fbx                # gitignored — get your own from mixamo.com
                                 #   (FBX Binary, T-Pose, Without Skin)
                                 # used by demos 04 and 05

Mixamo X Bot

Demos 04 and 05 expect assets/X Bot.fbx. It's gitignored (size + license boundary). Download yours from mixamo.com: pick the "X Bot" character, export as FBX Binary, T-Pose, Without Skin, and drop it into assets/.

Live ESP32 CSI overlay (demo 05 only)

server/ruvultra-csi-bridge.py is the systemd-deployable bridge that runs on the ruvultra host (over Tailscale). It listens for ESP32-S3 CSI on UDP and re-broadcasts it as WebSocket frames at ws://ruvultra:8766/csi. Demo 05 auto-connects; if the socket is down, it falls back to the bundled idle clip plus a synthetic CSI driver.

Open issues

#583 — head/face tracking fidelity in 05-skinned-realtime.html. Recommended fix: swap MediaPipe Pose Heavy for MediaPipe Holistic (same API, adds 468-point face mesh + hand landmarks for proper PnP head pose and finger curl tracking).
