Adds a new GitHub Pages workflow that publishes the ADR-097 three.js demo gallery alongside the existing observatory/, pose-fusion/, pointcloud/, and nvsim/ deployments. Uses keep_files: true so the other deployments are preserved. What ships: * `examples/three.js/index.html` — new landing page that lists all 5 demos with screenshots, "standalone" vs "needs FBX" badges, and an honest note explaining the Mixamo X Bot.fbx license boundary (demos 04 and 05 need a local download from mixamo.com; demos 01-03 run standalone in any modern browser). * `.github/workflows/threejs-pages.yml` — staged copy of demos/, screenshots/, README.md, and the new index.html into `_site/three.js/`. Drops an `assets/README.txt` placeholder explaining the FBX-not-shipped policy. Triggered on changes to examples/three.js/** or the workflow itself. * README.md — adds the live link to the existing demo row (`▶ three.js Demos (5)`) plus a one-line callout describing the gallery and the FBX caveat. After this PR merges, the workflow runs and publishes: https://ruvnet.github.io/RuView/three.js/ |
||
|---|---|---|
| .. | ||
| demos | ||
| screenshots | ||
| server | ||
| .gitignore | ||
| README.md | ||
| index.html | ||
README.md
three.js demos
Five progressively richer browser demos of the ADR-097 sensing-helpers scene, ending with a live MediaPipe-Pose → Mixamo X Bot retargeting pipeline driven by a real ESP32 CSI feed.
Run them
python examples/three.js/server/serve-demo.py
# then open one of the URLs the script prints
server/serve-demo.py is a tiny ThreadingHTTPServer with aggressive
no-cache headers — the stdlib http.server is single-threaded and times out
on the parallel script + FBX fetches the demos make.
Demos
| # | File | What it shows |
|---|---|---|

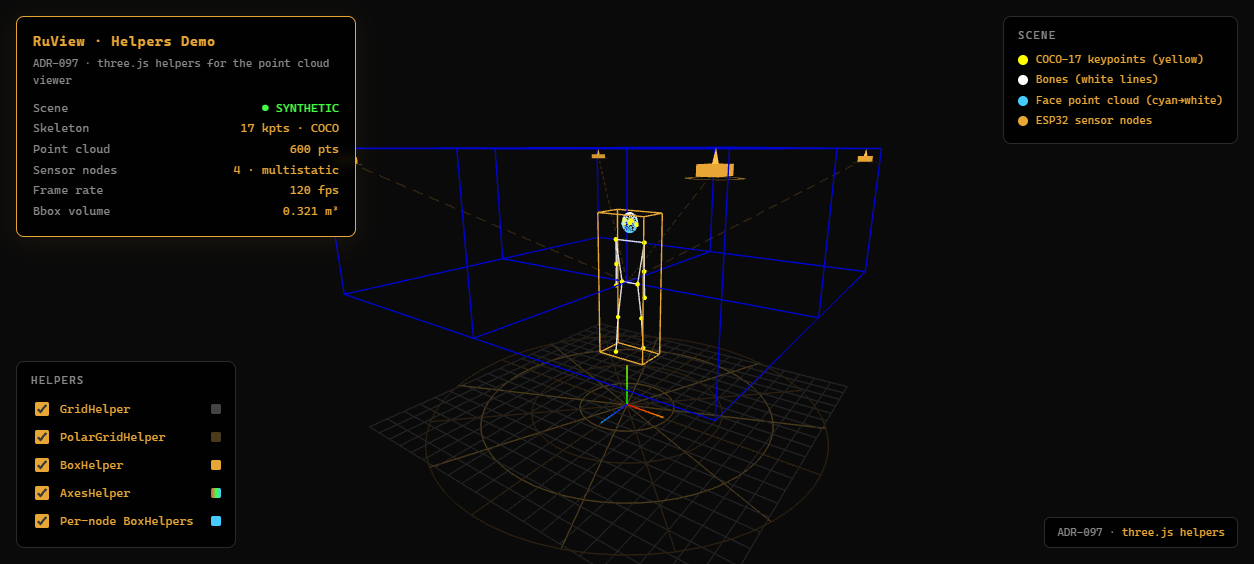

| 01 | demos/01-helpers.html |
Plain ADR-097 helpers in the point-cloud viewer |

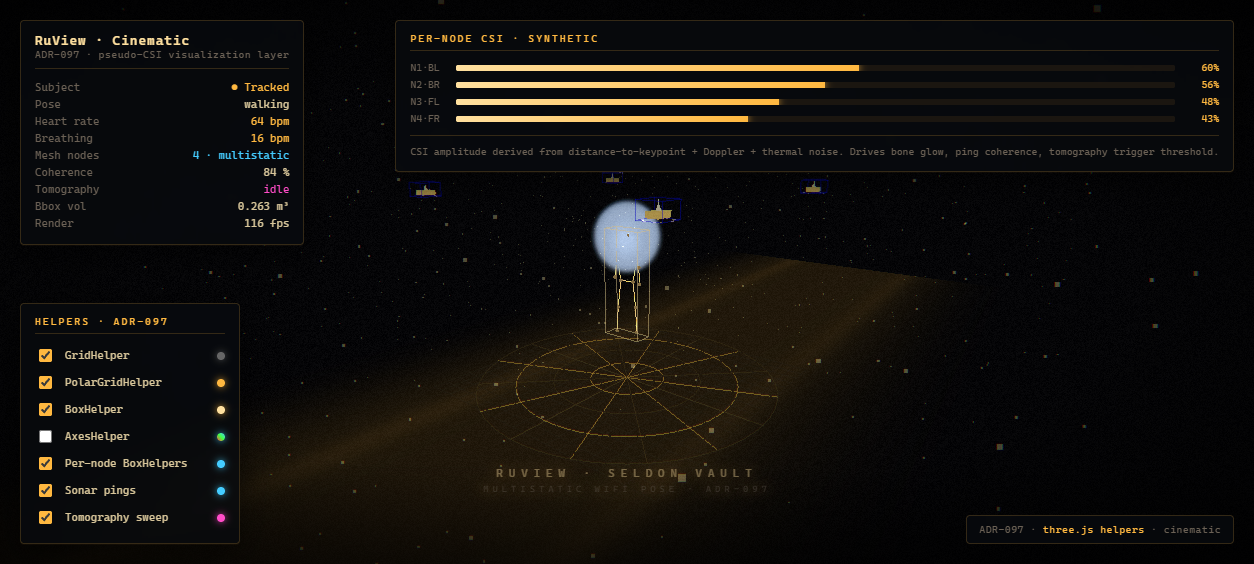

| 02 | demos/02-cinematic.html |
Cinematic camera + pseudo-CSI visualization on top of #01 |

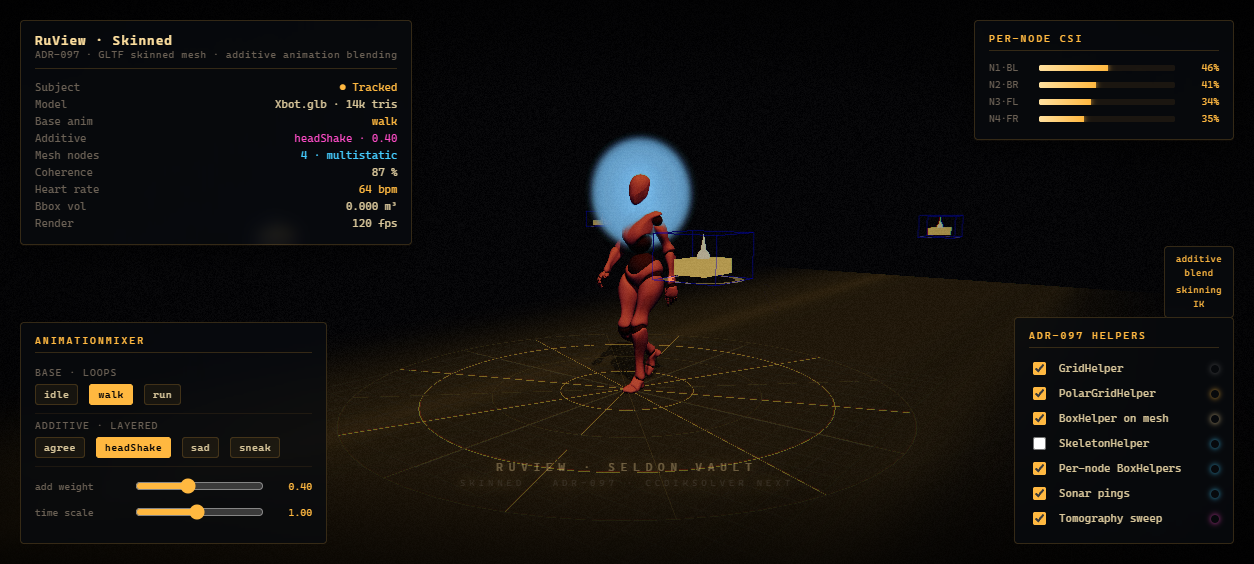

| 03 | demos/03-skinned.html |
GLTF skinned mesh + additive animation blending |

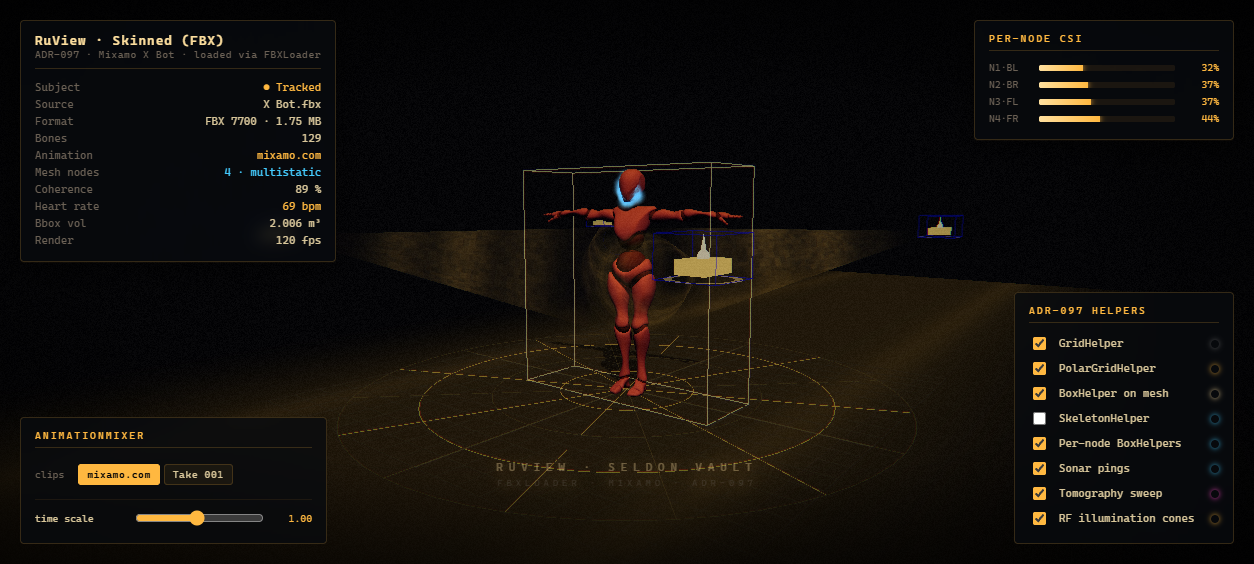

| 04 | demos/04-skinned-fbx.html |
Mixamo X Bot loaded from FBX in the ADR-097 scene |

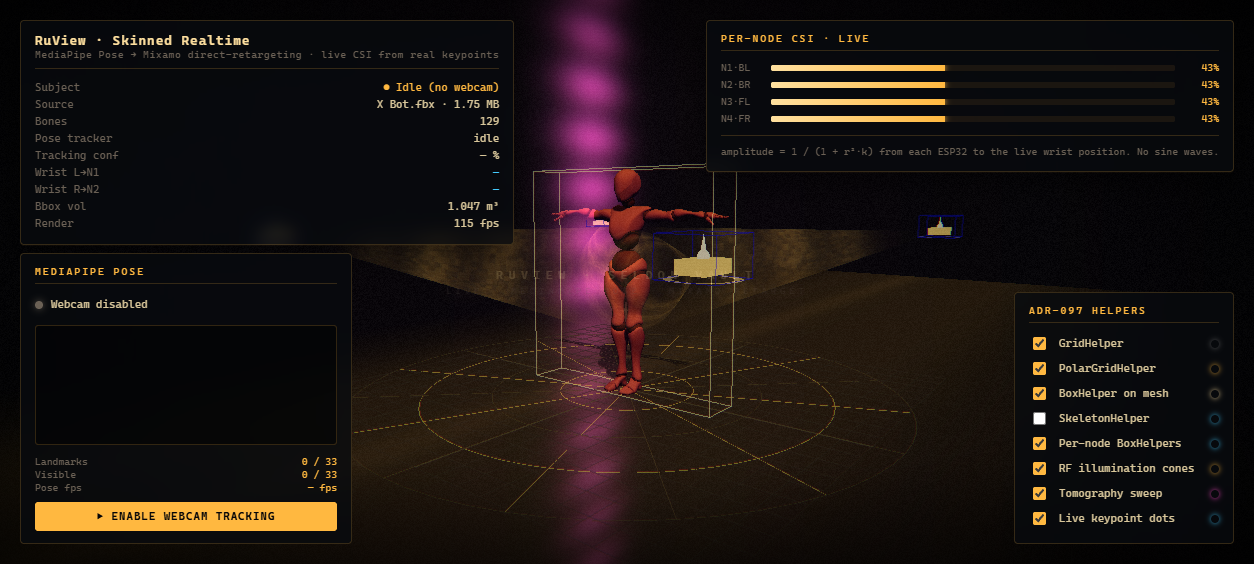

| 05 | demos/05-skinned-realtime.html |
Webcam → MediaPipe Pose Heavy → Mixamo IK retarget, live ESP32 CSI overlay |
| Screenshot | |
|---|---|
 |
 |
 |
 |
 |
Layout
examples/three.js/
├── README.md
├── .gitignore
├── demos/ # 5 self-contained HTML demos
│ ├── 01-helpers.html
│ ├── 02-cinematic.html
│ ├── 03-skinned.html
│ ├── 04-skinned-fbx.html
│ └── 05-skinned-realtime.html
├── screenshots/ # one PNG per demo
│ └── 0N-*.png
├── server/
│ ├── serve-demo.py # local HTTP server with no-cache headers
│ └── ruvultra-csi-bridge.py # ESP32 CSI WebSocket bridge (ruvultra:8766)
└── assets/
└── X Bot.fbx # gitignored — get your own from mixamo.com
# (FBX Binary, T-Pose, Without Skin)
# used by demos 04 and 05
Mixamo X Bot
Demos 04 and 05 expect assets/X Bot.fbx. It's gitignored (size + license
boundary). Download yours from mixamo.com: pick the
"X Bot" character, export as FBX Binary, T-Pose, Without Skin,
and drop it into assets/.
Live ESP32 CSI overlay (demo 05 only)
server/ruvultra-csi-bridge.py is the systemd-deployable bridge that runs on
the ruvultra host (over Tailscale). It listens for ESP32-S3 CSI on UDP and
re-broadcasts it as WebSocket frames at ws://ruvultra:8766/csi. Demo 05
auto-connects; if the socket is down, it falls back to the bundled idle clip
plus a synthetic CSI driver.
Open issues
- #583 — head/face tracking
fidelity in
05-skinned-realtime.html. Recommended fix: swap MediaPipe Pose Heavy for MediaPipe Holistic (same API, adds 468-point face mesh + hand landmarks for proper PnP head pose and finger curl tracking).
