Flatten the 13-file flat layout into purposeful subfolders so the demo
collection has a clean top-level entry point (README.md) and the file roles
are obvious from a directory listing.
Layout:
demos/ 01..05 — numbered for the progression (helpers → cinematic →
skinned → skinned-fbx → skinned-realtime)
screenshots/ one PNG per demo, matching the demo's filename prefix
server/ serve-demo.py + ruvultra-csi-bridge.py
assets/ X Bot.fbx (gitignored, used by demos 04 and 05)
Touched files (beyond the renames):
- 04-skinned-fbx.html, 05-skinned-realtime.html: MODEL_URL now resolves
'../assets/X%20Bot.fbx' instead of './X%20Bot.fbx'
- server/serve-demo.py: chdir() walks 3 levels up to repo root (was 2), and
the URL banner now lists all 5 demos
- .gitignore: comment refresh — points at assets/ and screenshots/
- 05-skinned-realtime.html also picks up in-flight fps-tune work from this
branch (Holistic script, SMOOTH_K URL param, slerp gain scaling) since
those edits and the rename hit the same file
Verified end-to-end:
- python examples/three.js/server/serve-demo.py
- all 5 demos return 200, X Bot.fbx returns 200 from new asset/ path
- demos 04 + 05 render the X Bot mesh; 0 JS errors via browser eval
- screenshots reproduced match the originals
Co-Authored-By: claude-flow <ruv@ruv.net>
|
||
|---|---|---|
| .. | ||
| demos | ||
| screenshots | ||
| server | ||
| .gitignore | ||
| README.md | ||
README.md
three.js demos
Five progressively richer browser demos of the ADR-097 sensing-helpers scene, ending with a live MediaPipe-Pose → Mixamo X Bot retargeting pipeline driven by a real ESP32 CSI feed.
Run them
python examples/three.js/server/serve-demo.py
# then open one of the URLs the script prints
server/serve-demo.py is a tiny ThreadingHTTPServer with aggressive
no-cache headers — the stdlib http.server is single-threaded and times out
on the parallel script + FBX fetches the demos make.
Demos
| # | File | What it shows |
|---|---|---|
| 01 | demos/01-helpers.html |
Plain ADR-097 helpers in the point-cloud viewer |
| 02 | demos/02-cinematic.html |
Cinematic camera + pseudo-CSI visualization on top of #01 |

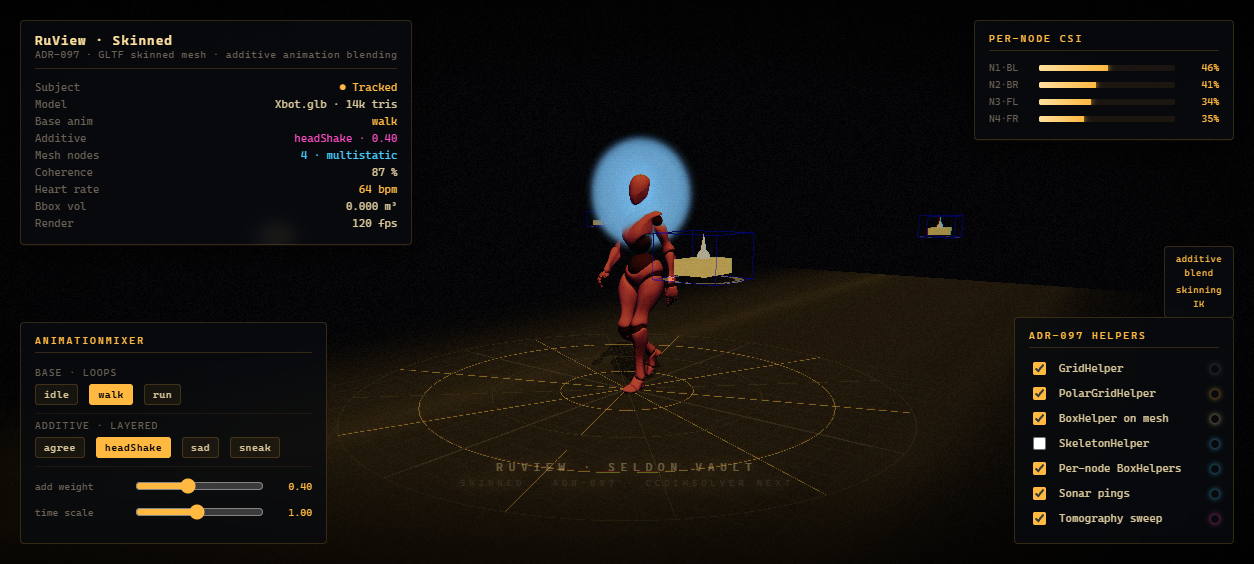

| 03 | demos/03-skinned.html |
GLTF skinned mesh + additive animation blending |
| 04 | demos/04-skinned-fbx.html |
Mixamo X Bot loaded from FBX in the ADR-097 scene |
| 05 | demos/05-skinned-realtime.html |
Webcam → MediaPipe Pose Heavy → Mixamo IK retarget, live ESP32 CSI overlay |
| Screenshot | |
|---|---|
 |
 |
 |
 |
 |
Layout
examples/three.js/
├── README.md
├── .gitignore
├── demos/ # 5 self-contained HTML demos
│ ├── 01-helpers.html
│ ├── 02-cinematic.html
│ ├── 03-skinned.html
│ ├── 04-skinned-fbx.html
│ └── 05-skinned-realtime.html
├── screenshots/ # one PNG per demo
│ └── 0N-*.png
├── server/
│ ├── serve-demo.py # local HTTP server with no-cache headers
│ └── ruvultra-csi-bridge.py # ESP32 CSI WebSocket bridge (ruvultra:8766)
└── assets/
└── X Bot.fbx # gitignored — get your own from mixamo.com
# (FBX Binary, T-Pose, Without Skin)
# used by demos 04 and 05
Mixamo X Bot
Demos 04 and 05 expect assets/X Bot.fbx. It's gitignored (size + license
boundary). Download yours from mixamo.com: pick the
"X Bot" character, export as FBX Binary, T-Pose, Without Skin,
and drop it into assets/.
Live ESP32 CSI overlay (demo 05 only)
server/ruvultra-csi-bridge.py is the systemd-deployable bridge that runs on
the ruvultra host (over Tailscale). It listens for ESP32-S3 CSI on UDP and
re-broadcasts it as WebSocket frames at ws://ruvultra:8766/csi. Demo 05
auto-connects; if the socket is down, it falls back to the bundled idle clip
plus a synthetic CSI driver.
Open issues
- #583 — head/face tracking
fidelity in
05-skinned-realtime.html. Recommended fix: swap MediaPipe Pose Heavy for MediaPipe Holistic (same API, adds 468-point face mesh + hand landmarks for proper PnP head pose and finger curl tracking).
